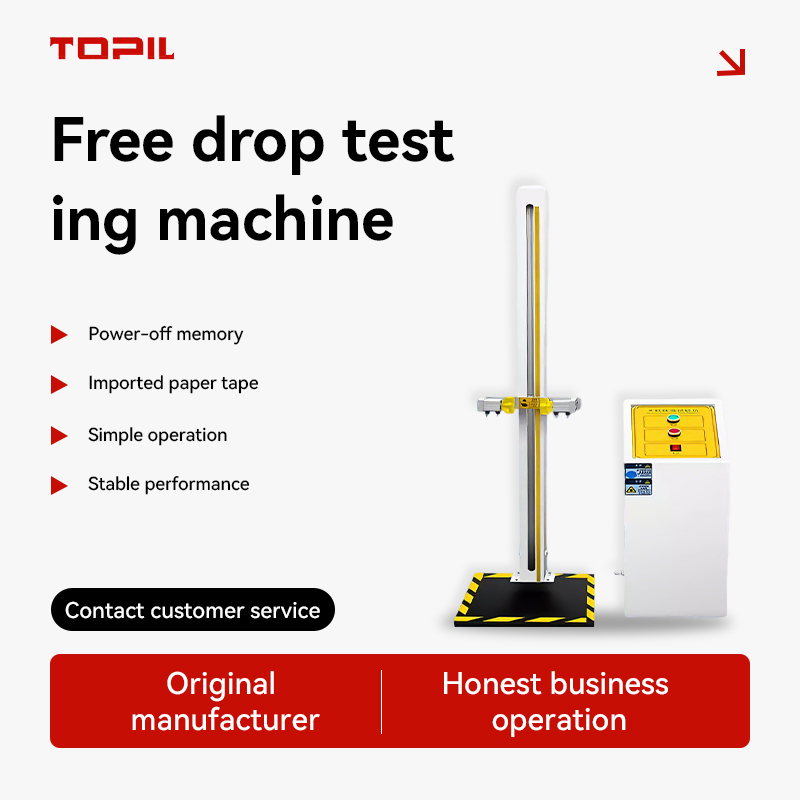

TOPIL Drop-Guard™ Precision Mobile Phone Drop Tester – Automated Single-Wing Drop Testing System for Electronics

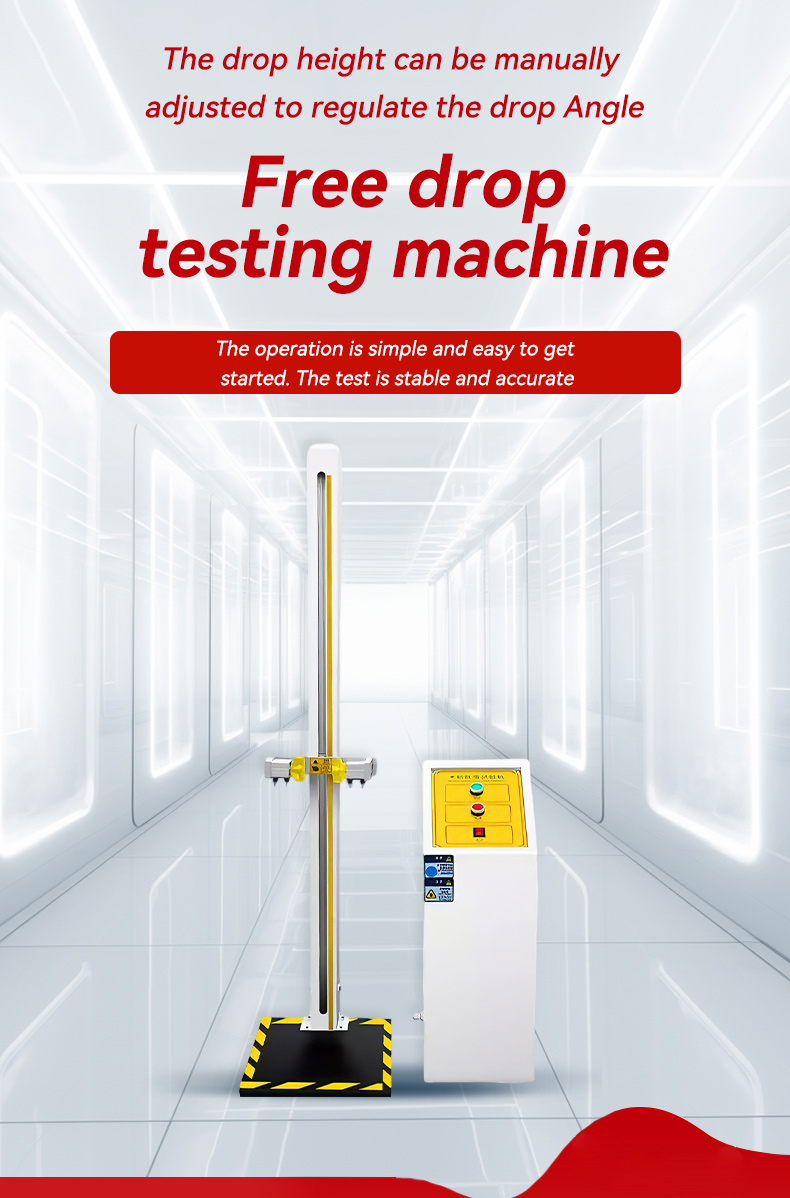

Key Features

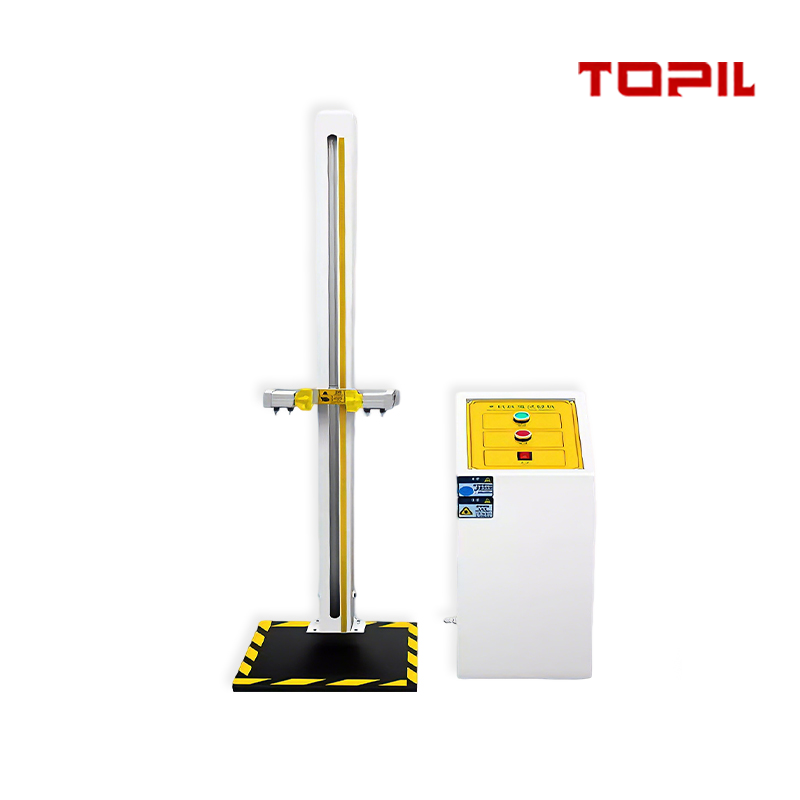

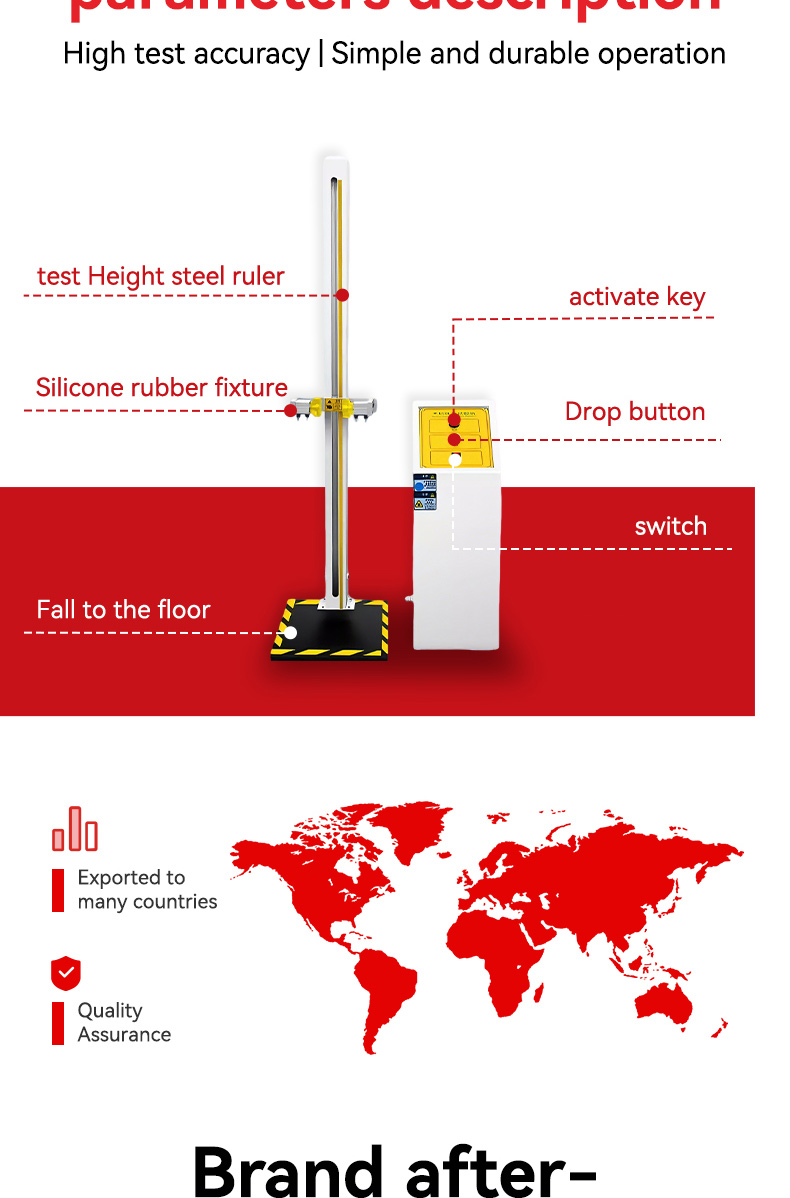

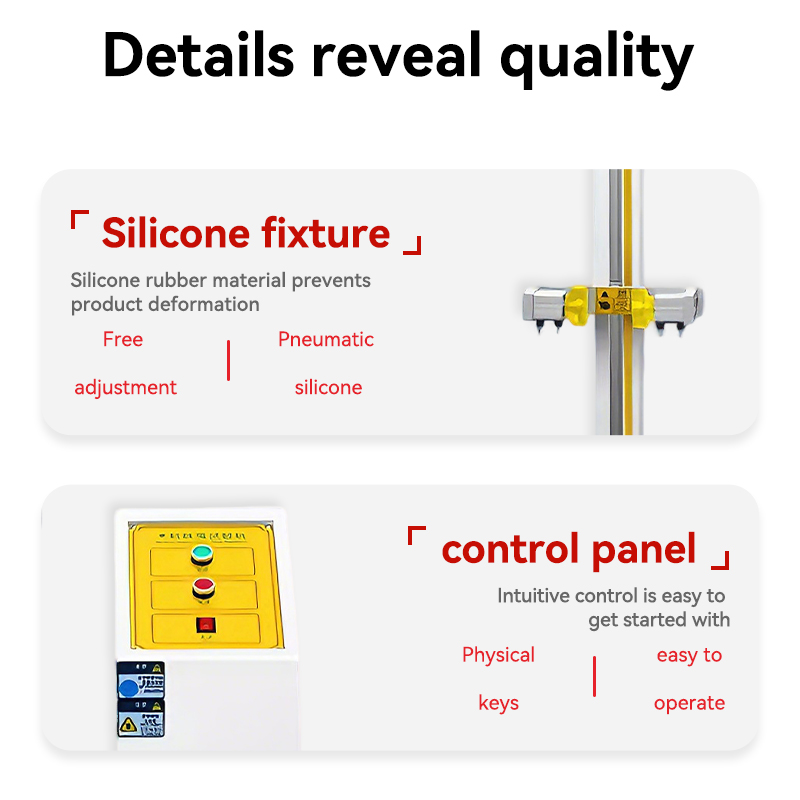

• Precision Pneumatic Release: Utilizes a high-speed pneumatic clamp/release mechanism to ensure a perfectly vertical drop without any initial rotation or lateral force.

• Multi-Angle Testing: Specially designed fixtures allow for Face, Edge, and Corner drops to identify structural weaknesses in screen glass and chassis.

• Smart Digital Height Control: Equipped with a motorized lift and a digital display for easy adjustment from $300\text{mm}$ to $1500\text{mm}$ (customizable).

• Dual-Column Stability: A reinforced dual-column structure ensures the drop arm remains perfectly horizontal, providing 100% repeatable test data.

• Specialized Impact Surfaces: Includes a standard reinforced steel base; optional wooden or marble impact plates are available to meet specific MIL-STD-810G or IEC 60068 protocols.

• Compact & Safe Design: A space-saving footprint with an integrated emergency stop and remote-control release for operator safety.

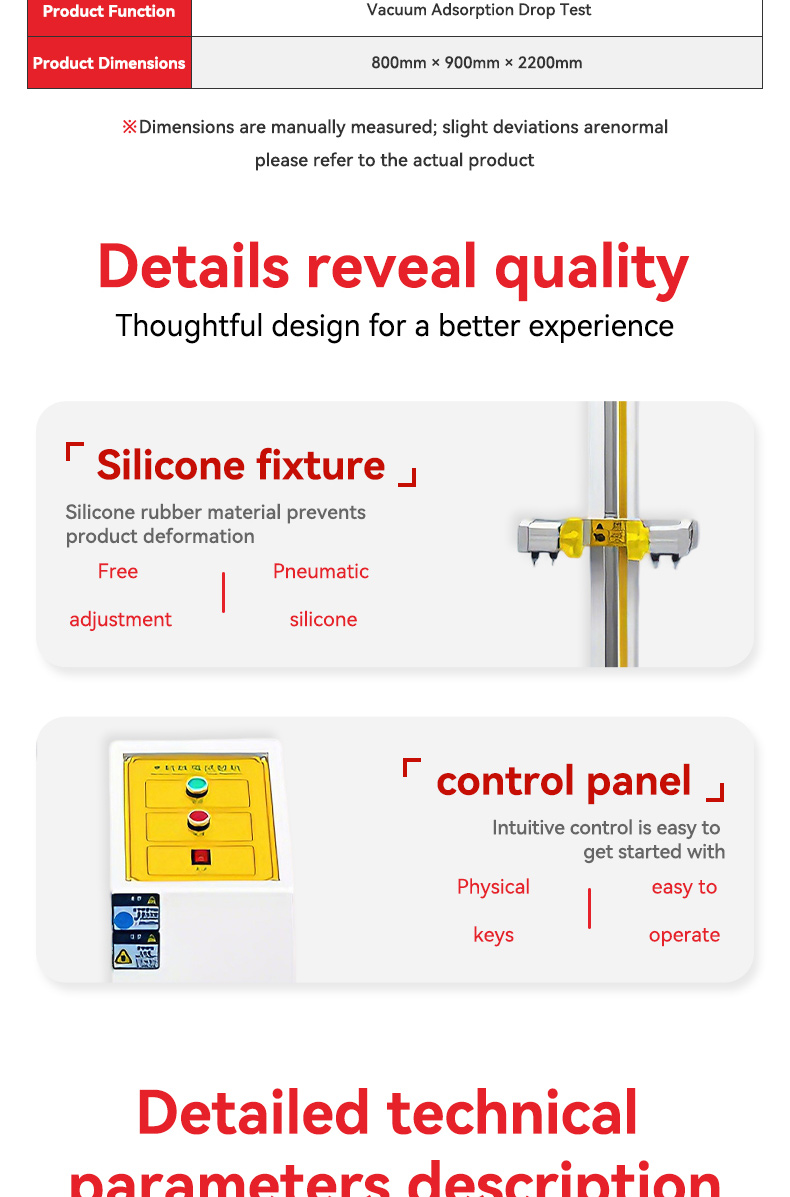

Technical Deep-Dive

1. Zero-Torque Release Technology

The biggest challenge in drop testing is avoiding "accidental spin" during release. Our 22-year legacy in precision engineering has resulted in a "Quick-Snap" pneumatic jaw that retracts faster than gravity, ensuring the device falls exactly at the angle you set—every single time.

2. Intelligent Height Positioning

• Auto-Calibration: The system features a built-in optical sensor to calibrate the "zero point" from the impact floor.

• One-Touch Ascent: Simply input the desired height on the digital controller, and the arm moves to the exact millimeter.

3. Comprehensive Compliance

The Drop-Guard™ is engineered to help your products achieve certification for:

• IEC 60068-2-31: Rough handling shocks.

• MIL-STD-810G: Method 516.6 Procedure IV (Transit Drop).

• GB/T 2423.8: Environmental testing for electrical products

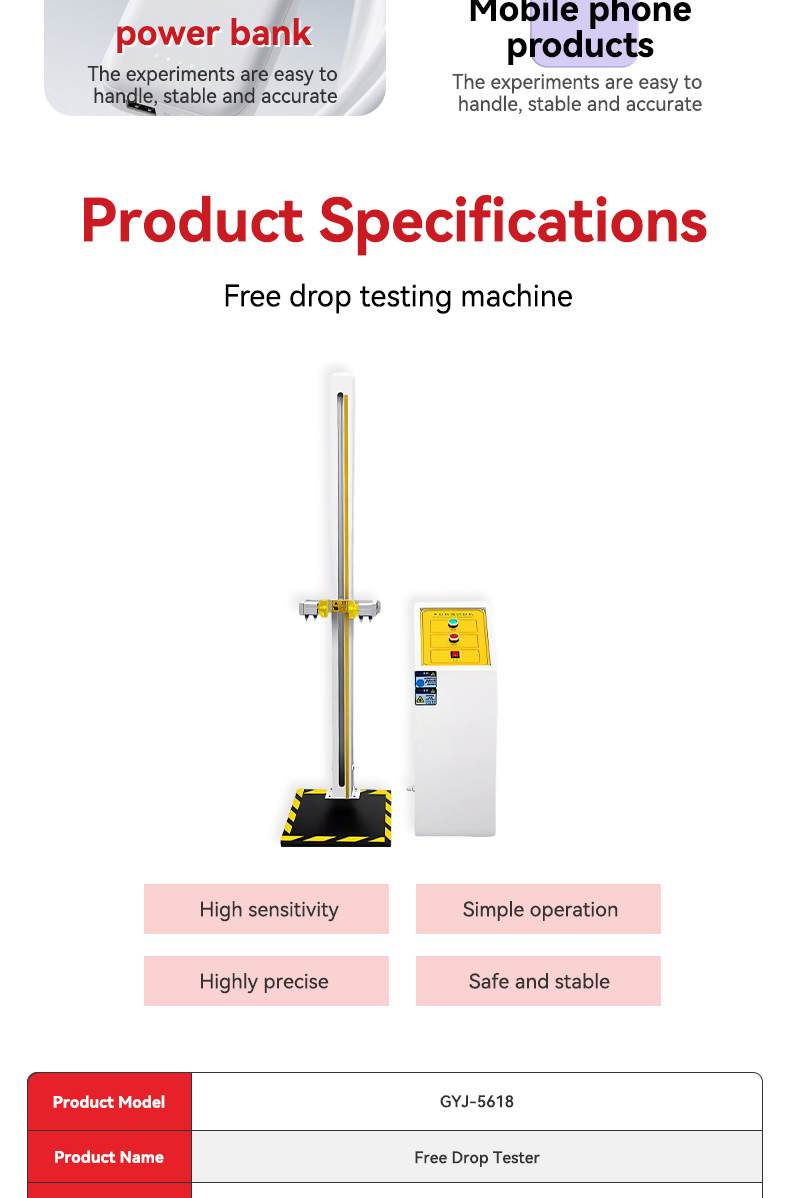

  Technical Specifications

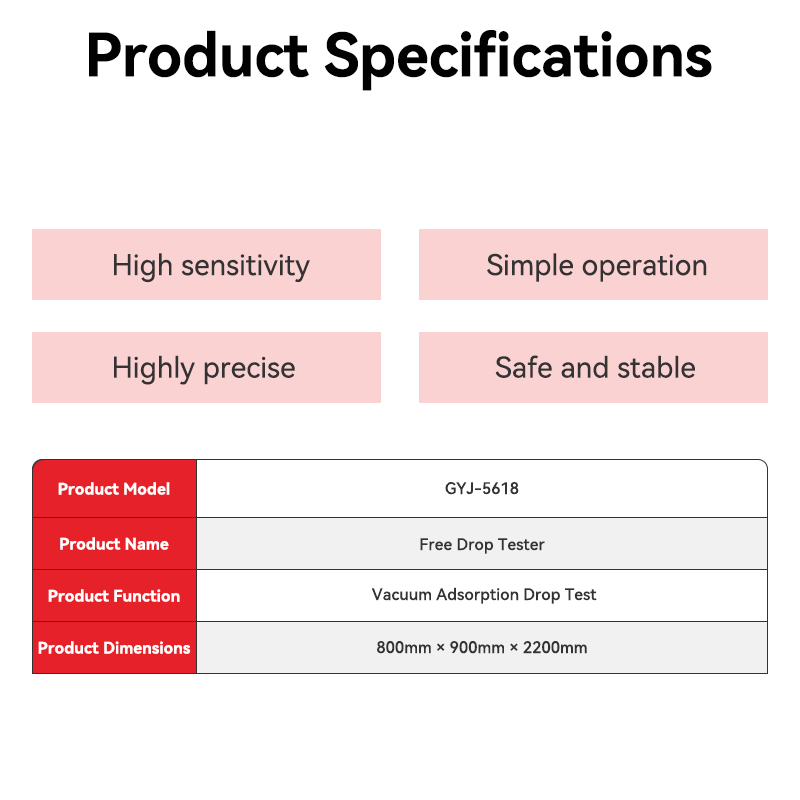

  Parameter	Specification
  Drop Height Range	$300\text{mm}-1500\text{mm}$ (Digital Adjustable)
  Height Accuracy	$\pm 2\text{mm}$
  Max Specimen Weight	$2\text{kg}$ (Standard) / Customizable for Tablets
  Drop Method	Pneumatic Quick-Release (Zero Friction)
  Testing Angles	0∘,45∘,90∘ (Face, Edge, Corner)
  Floor Base Material	$20\text{mm}$ A3 Steel / Optional Wood & Marble
  Power Supply	AC $220\text{V}/50\text{Hz}$ or $110\text{V}/60\text{Hz}$
  Gas Source Required	$0.5\text{MPa}$ Clean Compressed Air

Industry Applications

• Smartphone Manufacturing: Testing the durability of Gorilla Glass and OLED assemblies.

• Wearable Tech: Impact testing for smartwatches and fitness trackers.

• Protective Case Brands: Validating "Military-Grade" protection claims for phone cases.

• Medical Devices: Ensuring handheld diagnostic tools remain functional after a drop.

Why Choose TOPIL?

• 22 Years of Proven Precision: A trusted partner for the world's leading consumer electronics labs since 2004.

• Global Logistics: Shipped in a reinforced, fumigated plywood crate with full CE documentation.

• Expert Support: Includes a Calibration Certificate, video setup guides, and a 1-year comprehensive warranty.
